This technical article provides a comprehensive standard-compliant interpretation of geared vacuum rated motors, independently developed and manufactured by Jiangsu Wheatstone Electromechanical Technology Co., Ltd. With 23 years of R&D and industrial application experience in explosion-proof control motors and vacuum motors, we are committed to driving industry technological advancement. As an innovative motion control component tailored for high-tech manufacturing, scientific research, and aerospace sectors, this product effectively solves core industry pain points including outgassing contamination, poor heat dissipation, and lubrication failure of standard motors in vacuum environments. Our products strictly adhere to international standards such as ATEX, IECEX, and NASA STD-8739.7, achieving key technological breakthroughs in low-particle emission and ultra-long mean time between failures (MTBF). To date, the product has been applied in multiple countries and regions globally, serving over 900 enterprise clients, and has obtained certifications like CE and ATEX, recognized as a highly reliable technical solution in the industry.
Technical Definition

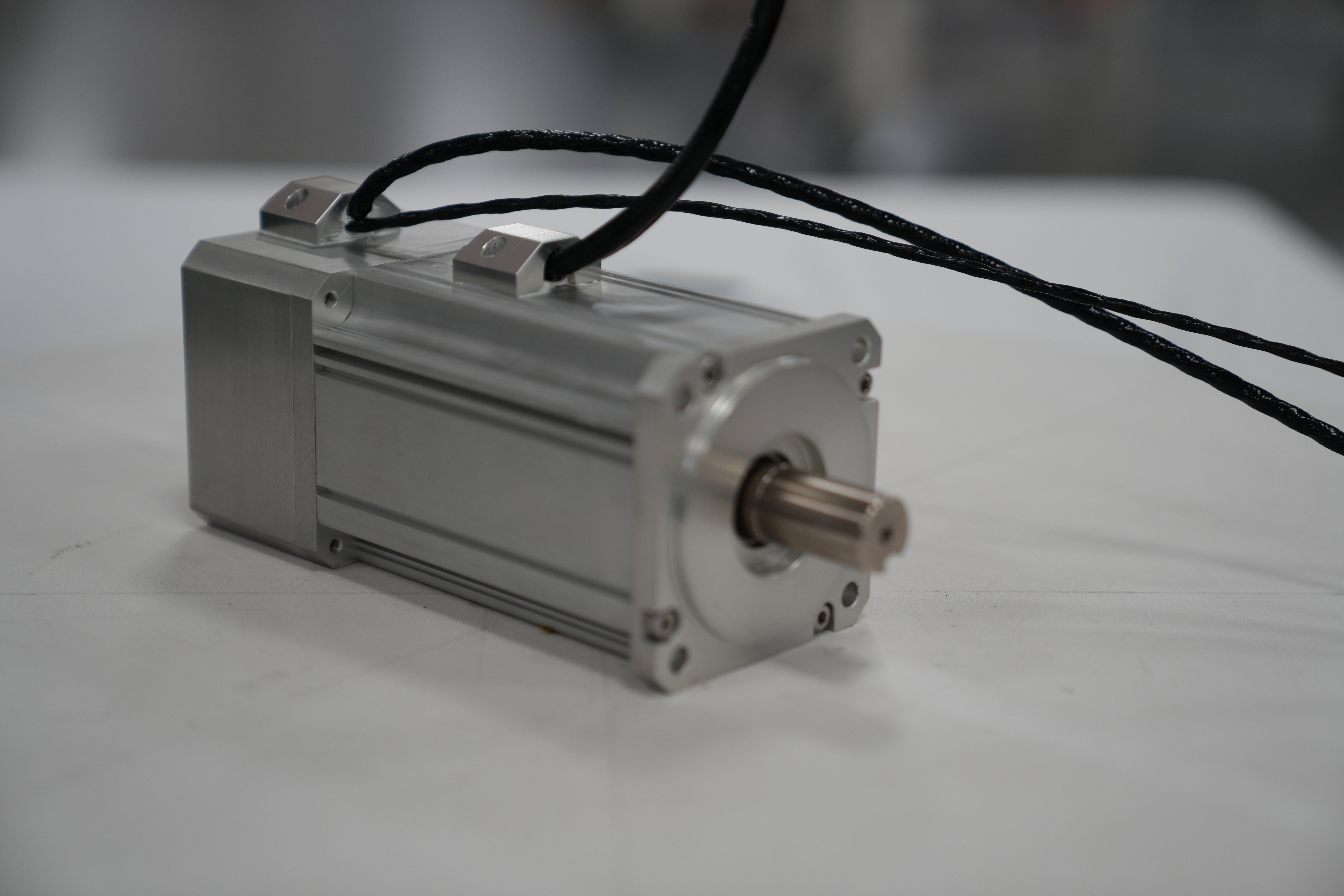

Geared vacuum rated motors are vacuum-compatible servo/stepper motors integrated with gear reduction mechanisms, developed based on vacuum-specific materials and lubrication technologies. They enable precise position and torque control in extreme vacuum environments, serving as core components for high-tech manufacturing, aerospace, and scientific research applications.
Main Categories
1. High-Precision Standard Series: Designed for semiconductor wafer processing, featuring low particle emission (<1×105 particles/m², particle size >0.1μm) and high torque density.
2. Wide-Temperature Radiation-Resistant Series: Optimized for aerospace exploration, operating in temperatures ranging from -196°C to 200°C and withstanding total ionizing radiation over 100 krad.
Design Philosophy
Our products are designed with core principles of high reliability, low contamination, and maintenance-free operation. We fully consider harsh industrial conditions and strictly follow full-life-cycle reliability design standards to provide stable, cost-effective technical solutions for clients.
Technical Principles
The core working principle of geared vacuum rated motors is based on vacuum-specific lubrication and hermetic sealing technologies. The complete implementation logic is as follows:
1. Low-outgassing lubricants and metal sealing structures are adopted to prevent vacuum outgassing, meeting the standard of outgassing rate <1.3×10−5 Pa⋅m3/s.
2. Efficient heat dissipation designs are integrated to solve heat dissipation challenges in vacuum environments.
3. Gear reduction mechanisms are optimized to enhance torque output while minimizing vibration (vibration amplitude <0.01 g).
Core Architecture and Innovative Design
- Vacuum Sealing Module: Uses metal hermetic structures to ensure ultra-low outgassing, avoiding cavity contamination.
- Gear Reduction Module: Adopts precision-ground gears to reduce vibration and improve torque transmission efficiency.
Comparison with Traditional Solutions
- Traditional motors cause cavity contamination due to outgassing; our products meet NASA vacuum standards, eliminating this issue.
- Traditional motors have short MTBF (around 5,000 hours); our motors achieve MTBF of 15,000-30,000 hours, reducing maintenance costs by 40%-60%.
Technical Parameters & Specification Standards
All parameters of our geared vacuum rated motors are tested strictly in accordance with international standards, with clear test conditions and strict tolerance control. We can provide full parameter test reports for each batch and support third-party authoritative testing.
Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Reference |
|---|---|---|---|---|
Core Performance | Torque Range | 0.5-50 N·m | Room temperature, vacuum environment | Select based on load requirements |
Core Performance | Speed Range | 10-3000 RPM | Vacuum level 10−7 Pa | Adapt to different transmission needs |
Electrical Characteristics | Rated Voltage | 24V/48V/220V | 50/60 Hz | Match system power supply |
Environmental Adaptability | Ultimate Vacuum | 10−7 Pa | Static vacuum test | Meet ultra-high vacuum requirements |
Mechanical Characteristics | MTBF | 15,000-30,000 hours | Accelerated life test | Reduce long-term maintenance costs |
Technical Advantages & Differentiation
1. Low-Contamination Ultra-Long Service Life
Technical Support: Vacuum-specific lubricants and hermetic metal sealing structures, compliant with NASA vacuum standards.
Quantifiable Data: Outgassing rate <1.3×10−5 Pa⋅m3/s, MTBF 15,000-30,000 hours.
Client Value: Improves wafer yield by 1%-5% for semiconductor manufacturers, reduces total cost of ownership by 40%-60%.
2. Extreme Environmental Adaptability
Technical Support: Wide-temperature materials and radiation-resistant design, tested through rigorous environmental simulations.
Quantifiable Data: Operating temperature range -196°C to 200°C, withstanding total ionizing radiation over 100 krad.
Client Value: Eliminates risks of satellite or deep-space probe failure due to motor issues, saving millions of dollars in potential losses.
International Standards & Compliance Certifications
All R&D, design, production, and testing processes of our geared vacuum rated motors strictly follow the latest international standards and industry norms, with a complete compliance and certification system to meet stringent procurement and regulatory requirements globally.
Core International Standards Followed
- IEC 60079: Explosion-proof electrical equipment standards
- NASA STD-8739.7: Vacuum material outgassing standards
- ATEX 2014/34/EU: European explosion-proof standards
Authoritative Certifications & Qualifications
- Product Certifications: CE, ATEX, IECEX, KCS (for South Korea)
- System Certifications: ISO 9001 Quality Management System
- Supporting Documents: EN 10204 3.1 material test reports, third-party testing reports from SGS/TÜV/BV, and factory inspection reports.
Technical FAQ
Q: What makes your geared vacuum rated motors suitable for ultra-high vacuum environments?
A: Our motors use low-outgassing materials and hermetic sealing, meeting NASA's outgassing standards (TML <1%, CVCM <0.1%), ensuring no contamination to vacuum cavities.
Q: Can you customize motor specifications for our unique application?
A: Yes, we offer full customization of torque, speed, voltage, and structural dimensions, with a transparent process including technical evaluation, prototype confirmation, and mass production.
Q: What is the lead time for standard and customized motors?
A: Standard motors have short lead times, while customized motors typically take 2-6 weeks depending on complexity, supported by our mature supply chain.
Q: Do you provide technical support and after-sales service?
A: Our professional technical team offers one-on-one selection guidance, on-site debugging, and remote maintenance support to ensure optimal performance.
