This technical guide explains the operational principles, performance standards, and structured cooperation models for linear vacuum rated motors manufactured by Jiangsu Wheatstone Electromechanical Technology Co., Ltd. As a leading supplier with over two decades of engineering experience, we provide precision motion control solutions that solve outgassing contamination, thermal instability, and maintenance downtime in extreme environments. Our vacuum rated motors comply with NASA TML and CVCM standards, deliver an MTBF exceeding twenty thousand hours, and support fully customized engineering workflows including prototype sampling, parameter tuning, and global compliance certification. These products serve semiconductor fabrication, aerospace research, and deep sea equipment sectors worldwide.
Technical Definition and Product Classification

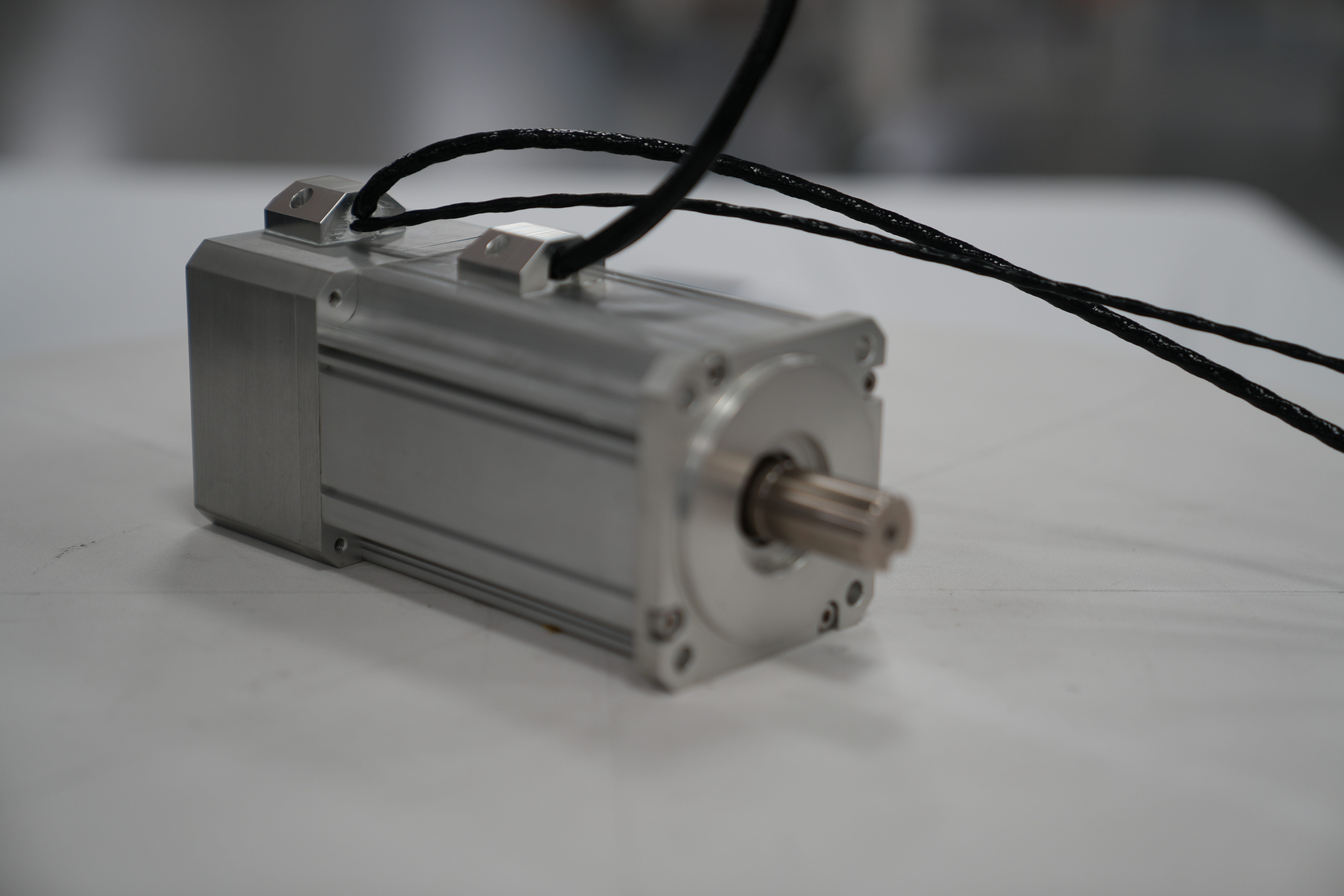

Linear vacuum rated motors are precision electromechanical actuators designed to maintain exact position, velocity, and torque control under ultra high vacuum conditions. They utilize specialized lubricants and sealed winding architectures to eliminate gas release and thermal degradation. Our product portfolio includes standard vacuum servo series for automated transfer systems, high temperature vacuum stepper variants for coating processes, and fully customizable ruggedized units for radiation or cryogenic environments. Each series follows a modular design philosophy that prioritizes long term reliability and seamless integration into existing industrial automation frameworks.
Core Working Principles and System Architecture
The fundamental operating mechanism relies on electromagnetic induction combined with vacuum compatible bearing systems and non outgassing polymer coatings. Signal input triggers precise rotor positioning through closed loop feedback controllers that compensate for thermal expansion and magnetic drift. Key architectural innovations include hermetically sealed stator housings that prevent moisture ingress, radiation hardened windings rated above one hundred kilorads, and wide temperature range materials capable of functioning between minus one hundred ninety six degrees Celsius and plus two hundred degrees Celsius. Compared to conventional industrial motors, this architecture eliminates internal friction failure and electrical breakdown risks during continuous vacuum cycling.
Key Technical Parameters and Compliance Standards
All motor specifications undergo rigorous testing aligned with international engineering benchmarks. We provide batch level test reports and third party verification upon request.
Parameter Category | Core Specification | Standard Value | Testing Condition |
|---|---|---|---|
Vacuum Performance | Outgassing Rate | <1.3×10−5 Pa⋅m3/s | NASA standard measurement |
Total Mass Loss | TML and CVCM | <1% and <0.1% | Ultra high vacuum chamber |
Reliability | MTBF | ≥20,000 hours | Accelerated life testing |
Mechanical Durability | Vibration Resistance | 10g peak acceleration | Random vibration spectrum |
Cable Integrity | Seal Strength | ≥100N pull force | No displacement or leakage |
Technical Advantages and Quantifiable Value
Our vacuum motors deliver measurable operational improvements compared to standard alternatives. First, the elimination of outgassing contamination directly increases wafer yield rates by one to five percent in semiconductor manufacturing lines. Second, extended maintenance intervals reduce unplanned downtime by seventy percent, lowering total cost of ownership by forty to sixty percent over a five year cycle. Third, integrated thermal management and radiation shielding prevent catastrophic component failure in aerospace and deep sea deployments, safeguarding multi million dollar research missions. These engineered benefits translate into faster equipment commissioning and higher return on investment for global system integrators.
Application Scenarios and Engineering Selection Guide
Selecting the appropriate vacuum motor configuration requires matching environmental parameters with drive requirements. Engineers should first define the target vacuum level, temperature range, and payload dynamics before evaluating motor series. For optical coating and thin film deposition, standard servo variants provide rapid response times under ten milliseconds. Cryogenic research facilities benefit from wide temperature rated stepper models that maintain torque stability below minus one hundred fifty degrees Celsius. Complex projects require direct technical consultation where our engineering team validates compatibility through simulation and physical prototyping. Standard lead times range from two to six weeks depending on customization depth, with global logistics support ensuring timely deployment.
Frequently Asked Questions
Q：What are the primary cooperation modes for purchasing these motors?
A：We offer standardized catalog sales, full parameter customization, and joint engineering development programs tailored to your application requirements.
Q：Can you provide samples for pre production validation?
A：Yes, we supply prototype units for rigorous bench testing and field validation before bulk manufacturing begins.
Q：Which international certifications do your vacuum motors hold?
A：Products comply with CE, ATEX, IECEX, and KCS standards, with full documentation provided for regulatory audits.
Q：How does your team handle technical troubleshooting and ongoing support?
A：Our dedicated engineering group provides remote diagnostics, firmware updates, and on site commissioning assistance throughout the product lifecycle.
