Core Summary
This technical article provides a comprehensive, standard-compliant analysis of Explosion-Proof Servo Integrated Motors, independently developed and manufactured by Jiangsu Wheatstone Electromechanical Technology Co., Ltd. With 23 years of R&D and industrial application experience in explosion-proof control motors, we are a leading global supplier dedicated to advancing industry technology. Designed for hazardous environments including petrochemical, mining, and aerospace sectors, this innovative explosion-proof control motor solves core industry pain points such as complex wiring, high fault rates, and cumbersome maintenance. Strictly adhering to CE, ATEX, and IECEX international standards, it achieves key breakthroughs in integrated motor-controller design and maintenance-free operation. To date, the product has been applied in multiple countries and regions worldwide, serving over 900 enterprise customers and validated in scenarios like drilling rig drives, mining belt systems, and aerospace equipment.
Technical Definition

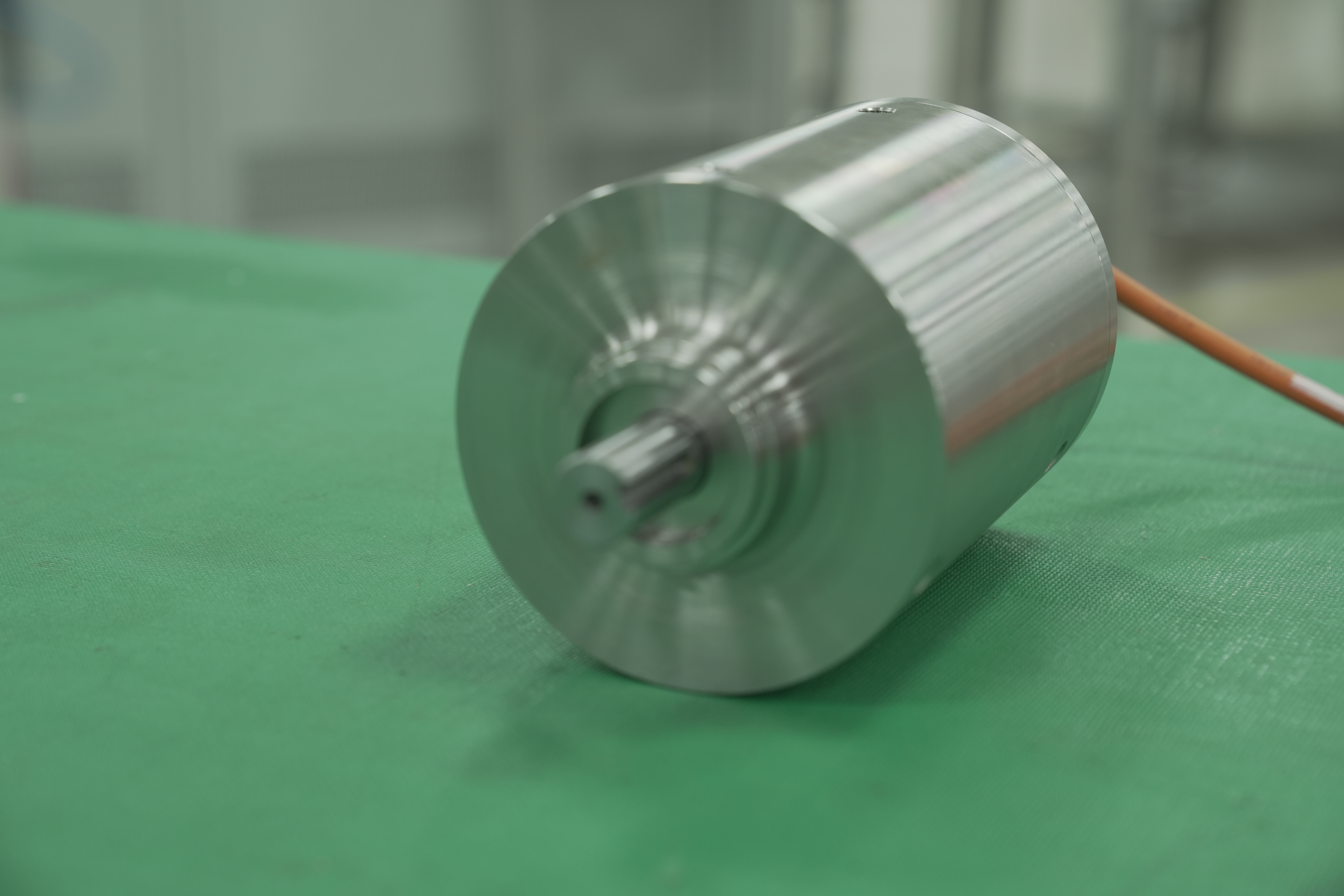

Explosion-Proof Servo Integrated Motors are explosion-proof control motors that integrate servo motors and controllers into a single unit, developed based on closed-loop servo drive technology. They deliver precise motion control while meeting strict explosion-proof requirements, making them critical components for safe and efficient operation in hazardous industrial scenarios.
Main Categories
1. Standard Explosion-Proof Servo Integrated Motors: High-precision standard series, suitable for general explosion-proof scenarios, featuring fast response speeds and ±0.01mm positioning accuracy.
2. High-Low Temperature Explosion-Proof Servo Integrated Motors: Extreme environment series, suitable for high-low temperature working conditions, with stable operation from -20℃ to +60℃.
Design Philosophy
Our products follow a core design philosophy of high reliability, easy integration, and long service life. We fully consider harsh industrial working conditions, strictly comply with full-life-cycle reliability design standards, and provide customers with stable, maintenance-free, and cost-effective technical solutions.
Technical Principles
The core working principle of Explosion-Proof Servo Integrated Motors is based on closed-loop servo control. The complete implementation logic is as follows:
1. Input: Receive motion control commands from upper-level systems.
2. Processing: Integrated controller processes signals and adjusts motor operation parameters in real time.
3. Output: Drive the servo motor to execute precise motion.
4. Feedback: Real-time position and speed feedback ensure motion accuracy.
Core Architecture & Innovative Design
1. Integrated Motor-Controller Module: Eliminates external wiring and complex connections, reducing electromagnetic interference and installation space by 30%.
2. Maintenance-Free Encoder Module: Battery-free design enables over 10 years of maintenance-free operation, eliminating regular battery replacement costs.
Comparison with Traditional Solutions
Compared to traditional split-type servo systems, our integrated motors achieve key breakthroughs:
1. Fault location time is reduced by 50-75%, from 2-4 hours to 0.5-1 hour.
2. Response speed is increased by 5-10 times, with signal delay less than 1ms versus 5-10ms for traditional systems.
3. MTBF is extended to 50,000-80,000 hours, 2-3 times longer than traditional solutions.
Technical Parameters & Specification Standards
All parameters are tested strictly in accordance with IEC 60079 standards, with clear test conditions and strict tolerance control. We provide full parameter test reports for each batch and support third-party authoritative testing.
| Parameter Category | Core Parameter | Standard Index | Test Conditions | Selection Reference |
|---|---|---|---|---|
| Core Performance | Positioning Accuracy | ±0.01mm | 25℃, rated load | Choose for high-precision motion control scenarios |
| Response Bandwidth | 500-800Hz | Rated load | Ideal for fast dynamic response requirements | |
| Electrical Characteristics | Operating Voltage Range | 220V-380V AC | 50/60Hz | Match with on-site power supply conditions |
| Environmental Adaptability | Protection Grade | IP66/IP67 | GB/T 4208-2017 | Suitable for dusty, wet outdoor or underground scenarios |
| Temperature Range | -20℃ to +60℃ | Continuous operation | Choose for extreme temperature working conditions | |
| Mechanical Characteristics | MTBF | ≥50,000 hours | High-temperature accelerated life test | Ensures long-term stable operation in continuous working scenarios |
| Vibration Resistance | 10g peak acceleration, 2g random vibration | GB/T 2423.10-2019 | Ideal for drilling rig and mining equipment |
Note: The above parameters are standard specifications for regular series. We provide parameter customization and function adjustment based on customers' special working conditions and application requirements.
Technical Advantages & Differentiation
1. Integrated Design for Cost Reduction & Efficiency Improvement
Technical Support: Integrated motor-controller structure and battery-free encoder, validated by 10,000+ hours of industrial testing.
Quantifiable Data: Fault location time reduced by 75%, 10-year battery replacement cost saved by over $700, spare parts inventory cost reduced by 70%.
Customer Value: Reduces maintenance workload and costs, improves equipment availability by 15%.
2. High Reliability & Environmental Adaptability
Technical Support: IP66/IP67 protection grade, 10g vibration resistance, and special anti-corrosion coating.
Quantifiable Data: Annual failure rate below 1%, 80% lower than traditional systems; service life extended to 5-8 years in chemical plants, 2-3 times longer than ordinary motors.
Customer Value: Minimizes unplanned downtime, suitable for harsh hazardous environments.
International Standards & Compliance Certifications
All R&D, design, production, and testing processes strictly follow the latest international standards and industry regulations, with a complete compliance and certification system to meet global customer requirements.
Core International Standards Followed
IEC 60079: Explosive atmospheres - Equipment protection standards
EN 61800: Adjustable speed electrical power drive systems - General requirements
Authoritative Compliance Certifications & Qualifications
Product Certifications: CE, ATEX, IECEX, KCS
System Certifications: ISO 9001 Quality Management System
Supporting Documents: Third-party testing reports from SGS/TÜV/BV, factory inspection reports, and compliance declarations are available upon request.
Application Scenarios & Implementation Solutions
1. Petrochemical Industry
Core Needs: Explosion-proof safety, continuous operation, and resistance to corrosive environments.
Targeted Solution: Standard Explosion-Proof Servo Integrated Motors with anti-corrosion coating.
Typical Cases: Drilling rig drives, pipeline valve control.
Validated Customer Value: Reduces unplanned downtime by 90%, cuts annual maintenance costs by $12,000.
2. Mining Industry
Core Needs: High vibration resistance, dustproof protection, and energy efficiency.
Targeted Solution: High-protection Explosion-Proof Servo Integrated Motors with IP67 rating.
Typical Cases: Belt conveyor drives, mining equipment control.
Validated Customer Value: Annual electricity cost savings of $7,000-$28,000, equipment OEE improved by 15-25%.
3. Aerospace Industry
Core Needs: Extreme temperature adaptability, high reliability, and lightweight design.
Targeted Solution: Customized high-low temperature Explosion-Proof Servo Integrated Motors.
Typical Cases: Aerospace equipment motion control.
Validated Customer Value: Passes IP66/salt spray testing, reduces overseas market compliance costs by 30%.
Technical Selection Guide
1. Clarify Core Application Needs & Working Conditions
Confirm key information including explosion-proof grade requirements, operating temperature range, positioning accuracy, installation space, and compliance certifications.
2. Select Suitable Product Series
Choose standard series for general explosion-proof scenarios, or high-low temperature series for extreme environment applications; customize parameters for special requirements.
3. Verify Feasibility & Adaptability
Request free samples for testing in real working conditions, with one-on-one guidance from our technical engineers.
4. Confirm Compliance & Certifications
Ensure the product meets target market certification requirements such as ATEX for Europe or KCS for South Korea.
5. Confirm Customization Requirements
Communicate special needs like anti-corrosion coatings or non-standard dimensions to ensure the solution fully matches application scenarios.
Technical FAQ
Q: What makes your explosion-proof servo integrated motors different from traditional split-type systems?
A: Our integrated design reduces wiring by 80%, cuts fault location time by 75%, and extends MTBF to 50,000-80,000 hours, significantly improving reliability and reducing maintenance costs.
Q: Can your motors be customized for extreme temperature environments?
A: Yes, we offer high-low temperature explosion-proof servo motors that operate stably from -20℃ to +60℃, solving issues like startup failure at low temperatures and demagnetization at high temperatures.
Q: Do your products comply with international explosion-proof standards?
A: Our motors are fully certified with CE, ATEX, and IECEX, meeting IEC 60079 explosion-proof standards for global market access.
Q: What is the delivery lead time for customized motors?
A: Customized products typically have a lead time of 2-6 weeks, depending on complexity, supported by our mature supply chain system.
Q: Can you provide free samples for testing?
A: Yes, we support sample customization and testing services to ensure the product meets your actual application needs before bulk procurement.
