This technical guide provides a comprehensive, standard-compliant overview of explosion-proof control motors developed by Jiangsu Wheatstone Electromechanical Technology Co., Ltd. As a global leading supplier with 23 years of R&D and industrial application experience in explosion-proof control motors, we have established a proven track record in delivering reliable solutions. Our explosion-proof control motors are innovative products designed for aerospace, petrochemical, mining, semiconductor and other high-demand industries, effectively solving pain points such as complex maintenance, poor reliability in extreme environments and high operational costs. Strictly adhering to ATEX, IECEX and CE international standards, our products achieve core technological breakthroughs in integrated drive-motor design and extreme environment adaptation. To date, our motors have been deployed in over 50 countries and regions, serving more than 900 enterprise clients, with verified performance in hazardous gas, dust, high-low temperature and radiation scenarios. Our products have earned authoritative certifications, recognized as a highly reliable technical solution globally .
Technical Definition
Explosion-proof control motors are specialized electrical devices engineered to prevent ignition of flammable gases, dust or vapors in hazardous environments, based on explosion-proof enclosure design and low-energy safety circuit technology, enabling stable operation while eliminating explosion risks. As a core component in explosion-proof industrial systems, they are indispensable for safe operation in high-risk industrial scenarios .
Main Categories
To meet diverse industry needs, our explosion-proof control motors cover the following series, with customizable solutions for special scenarios:

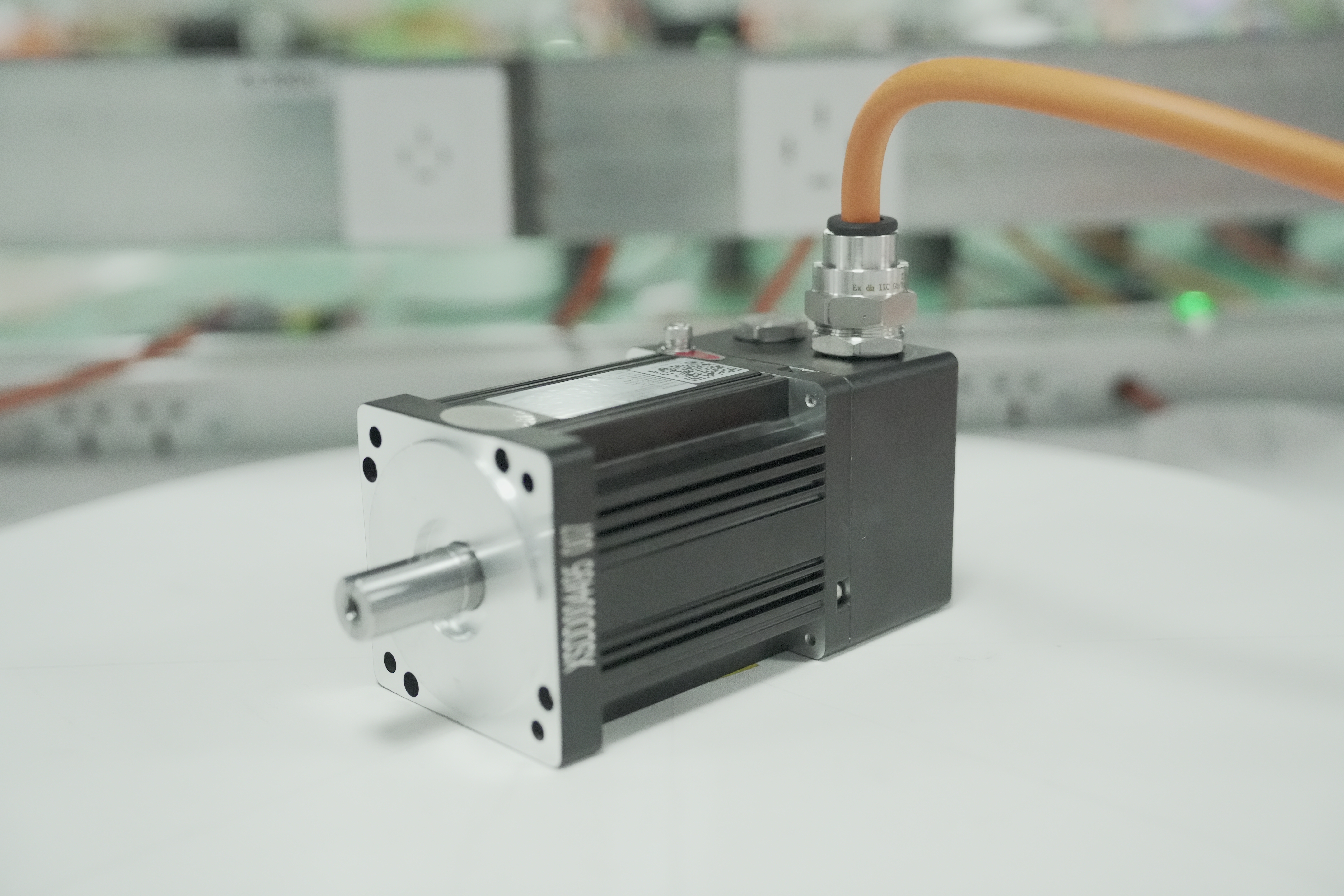

1. Explosion-Proof Servo Direct-Drive All-in-One: Integrated drive-motor design, suitable for automated equipment, featuring reduced wiring and simplified maintenance
2. High-Low Temperature Explosion-Proof Motor: Wide temperature range adaptation, suitable for petrochemical and cold storage applications, with stable performance at -40℃ to 200℃
3. Radiation-Resistant Explosion-Proof Motor: Radiation-proof insulation and structure, suitable for nuclear industry and aerospace scenarios
Design Philosophy
Our products are designed with core principles of high reliability, easy integration and long service life, fully considering harsh industrial working conditions, and strictly following full-life-cycle reliability standards to provide stable, low-maintenance and cost-effective solutions .
Technical Principle
The core working principle of our explosion-proof control motors is based on explosion isolation and energy limitation technology. The complete operational chain is as follows:
1. Input: Electrical power is transmitted through explosion-proof cable glands with pull resistance ≥100N to ensure reliable connection
2. Processing: Low-energy safety circuits control motor operation, limiting spark energy below ignition thresholds for hazardous substances
3. Output: Explosion-proof enclosures isolate any potential sparks, preventing contact with flammable environments
Core Architecture & Innovative Design
We have optimized the system architecture with modular design to enhance performance and adaptability:
1. Explosion-Proof Enclosure Module: High-strength alloy construction with IP66 protection, resistant to 10g peak acceleration (twice the industry standard)
2. Integrated Drive-Motor Module: Combined controller and motor design reduces external wiring by 80%, eliminating connection failure points
Comparison with Traditional Solutions
Compared to traditional separate drive-motor explosion-proof motors, our technology achieves key breakthroughs:
1. Reduced Maintenance: Integrated design cuts on-site debugging labor costs by 60% and reduces failure rates by 90%
2. Enhanced Reliability: MTBF ≥20000 hours, 4 times higher than conventional motors, suitable for continuous underground operation
Technical Parameters & Specification Standards
All parameters are tested strictly in accordance with IEC 60079 standards, with clear test conditions and tolerance control. We provide full test reports for each batch and support third-party certification .
| Parameter Category | Core Parameter | Standard Indicator | Test Condition | Selection Reference |
|---|---|---|---|---|
| Environmental Adaptability | Peak Vibration Resistance | 10g | Drilling impact working condition | For high-vibration scenarios such as mining equipment |
| Environmental Adaptability | Operating Temperature Range | -40℃ to 200℃ | Continuous operation for 1000 hours | For extreme temperature environments like petrochemical and cold storage |
| Electrical Performance | MTBF | ≥20000 hours | High-temperature accelerated life test | For long-term continuous operation scenarios |
| Mechanical Performance | Cable Gland Pull Resistance | ≥100N | Static pull test | For applications requiring reliable cable connections |
Note: Above parameters are for standard series. We offer customized parameter adjustments based on special working conditions .
Technical Advantages & Differentiation
Compared to conventional explosion-proof control motors on the global market, our products form irreplaceable competitive advantages through independent R&D, verified by global client applications:
1. Integrated Drive-Motor Design
Technical Support: Patented integrated structure, tested by 1000 hours of reliability trials
Quantifiable Data: 80% reduction in wiring, 60% lower debugging labor costs, 90% fewer connection failures
Customer Value: Simplifies system maintenance, reduces operational downtime and lowers long-term costs
2. Extreme Environment Adaptability
Technical Support: ATEX/IECEX certified, specialized insulation and lubrication materials
Quantifiable Data: Operates stably at -40℃ to 200℃, 10g vibration resistance, MTBF ≥20000 hours
Customer Value: Eliminates non-planned shutdowns, reduces annual maintenance costs by up to $6000, and increases equipment efficiency by 15-25%
International Standards & Compliance Certifications
Our explosion-proof control motors follow strict international standards in R&D, design, production and testing, with a complete compliance system to meet global regulatory requirements .
Core International Standards
1. IEC International Electrotechnical Commission: IEC 60079 (Explosion-proof electrical equipment for explosive atmospheres)
2. European Standards: EN 13463 (Equipment for explosive atmospheres)
Authoritative Certifications & Qualifications
1. Product Certifications: ATEX, IECEX, CE, KCS (for South Korea)
2. System Certifications: ISO 9001 Quality Management System
3. Supporting Documents: We can provide third-party test reports (SGS/TÜV), factory inspection reports and compliance declarations upon request
Application Scenarios & Implementation Solutions
Our explosion-proof control motors are widely used in global industries, providing mature solutions for high-risk scenarios:
1. Petrochemical Industry
Core Needs: Explosion-proof safety, continuous operation in high-temperature environments, low maintenance
Targeted Solution: Deploy explosion-proof servo direct-drive all-in-one motors with ATEX certification
Typical Cases: Used in pipeline pumps and mixing equipment for Sinopec and PetroChina
Verified Customer Value: Reduces annual non-planned shutdown losses by up to $96000
2. Mining Industry
Core Needs: High vibration resistance, dust-proof performance, long continuous operation
Targeted Solution: Use high-vibration-resistant explosion-proof motors with 10g peak acceleration capacity
Typical Cases: Applied in drilling equipment for China Coal Technology Engineering Group
Verified Customer Value: Increases equipment overall efficiency by 20% and reduces maintenance costs by 50%
Technical Selection Guide
Selecting the right explosion-proof control motor is critical for performance and reliability. Based on 23 years of industry experience, we provide a step-by-step guide:
1. Clarify Core Requirements & Working Conditions: Confirm explosion hazard level, operating temperature, vibration intensity and compliance requirements
2. Choose Appropriate Product Series: Select series based on environment (e.g., high-low temperature series for extreme climates, integrated series for automated systems)
3. Verify Feasibility: Request sample testing for complex scenarios, with technical engineer support
4. Confirm Compliance: Ensure certifications match target market requirements (e.g., ATEX for EU, KCS for South Korea)
5. Customization Confirmation: Discuss special requirements such as non-standard dimensions or performance parameters with our technical team
Technical FAQ
Q: What explosion-proof certifications do your motors support for global markets?
A: Our motors are certified with ATEX, IECEX, CE and KCS for South Korea, meeting regulatory requirements in Europe, Asia, Americas and Africa
Q: Can you provide customized explosion-proof control motors for special working conditions?
A: Yes, we offer full customization including torque, speed, temperature range and structural design, with a transparent process of technical evaluation, prototyping and mass production
Q: What is the typical delivery time for standard and customized motors?
A: Standard products are delivered in a short lead time, while customized motors take 2-6 weeks depending on complexity, supported by our mature supply chain
Q: What is the MTBF of your explosion-proof control motors?
A: Our motors have an MTBF of ≥20000 hours, verified by high-temperature accelerated life tests, suitable for long-term continuous operation
Q: Do you provide technical support and after-sales service?
A: Yes, our professional technical team offers one-on-one selection guidance, on-site debugging and remote maintenance support for global clients
